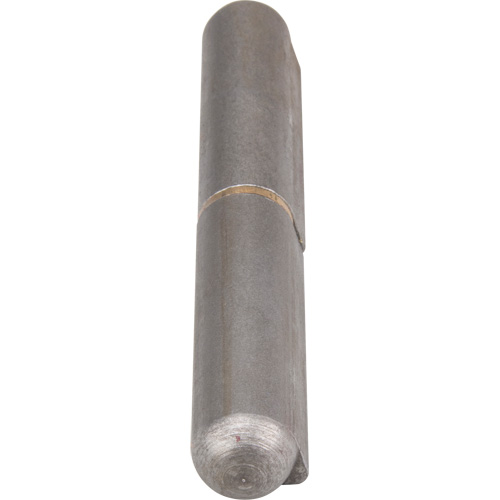

Weld-On Hinge, 0.63" Dia. x 4.724" L, Mild Steel w/Fixed Steel Pin

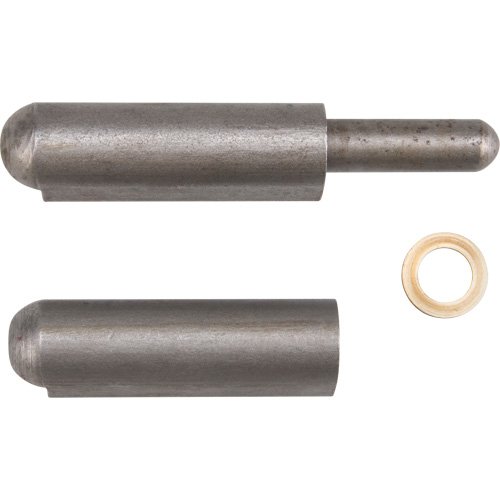

Weld-On Hinge, 0.63" Dia. x 4.724" L, Mild Steel w/Fixed Steel Pin - Image 2

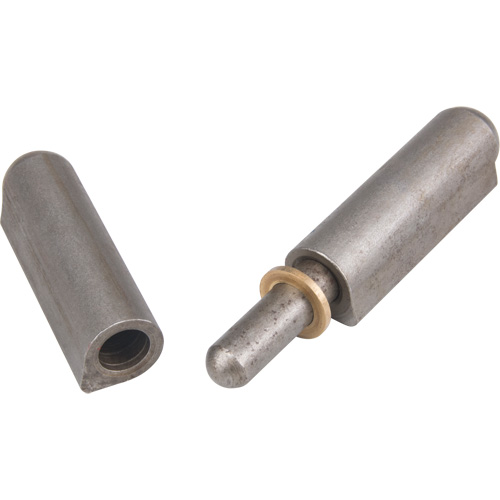

Weld-On Hinge, 0.63" Dia. x 4.724" L, Mild Steel w/Fixed Steel Pin - Image 3

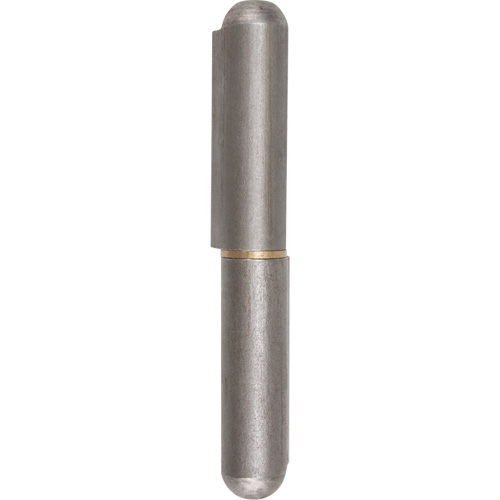

Weld-On Hinge, 0.63" Dia. x 4.724" L, Mild Steel w/Fixed Steel Pin - Image 4

Weld-On Hinge, 0.63″ Dia. x 4.724″ L, Mild Steel w/Fixed Steel Pin

$5.45

Sold as: Each

Brand: Aurora Tools

Product total
Options total
Grand total
SKU: TTV440 Category: Brand:

Description

  • Ideal for gates, machinery doors, BBQ pits, electrical boxes, trailers and more
  • Can be painted to match the door and frame
  • Hinges are specially buffed and are free of burrs, allowing for improved paint adherence
  • Comes standard with rounded ends and with/without grease fittings
  • Installation: Ensure the hinge is welded along the full length of the weld tab
  • Component replacement parts are available
  • Built to print solutions are available upon request

    • Additional information

    Weight 0.416 lbs
    Dimensions 4.8 × 0.7 × 0.8 in
    Frame Material

    Mild Steel w/Fixed Steel Pin
    Length

    4.724"
    Diameter

    0.63"
    Bushing Material

    Brass
    Pin Diameter

    0.433"
    Thickness

    0.787"
    Grease Fitting

    Not Included
    Manufacturer's Warranty

    1 Year Limited
